take our word for it: GOOD TOOLS PAY FOR THEMSELVES

We make our industry standard pool cleaning machines in several different configurations. All of our cleaners use interchangeable parts and debris bags for convenience, and all use our sealed and pressurized motor assembly. What's the difference between Service and Resort units? It's all in the cart. Click on the pictures below to review the features on each cleaner.

RESORT UNITS - FOR FACILITY MANAGERS

Please note: Because of the cart design, Resort units DO NOT include and are NOT compatible with our vehicle mount assembly. If you need to transport the cleaner using your vehicle's trailer hitch, please see the SERVICE-21 and SERVICE-30.

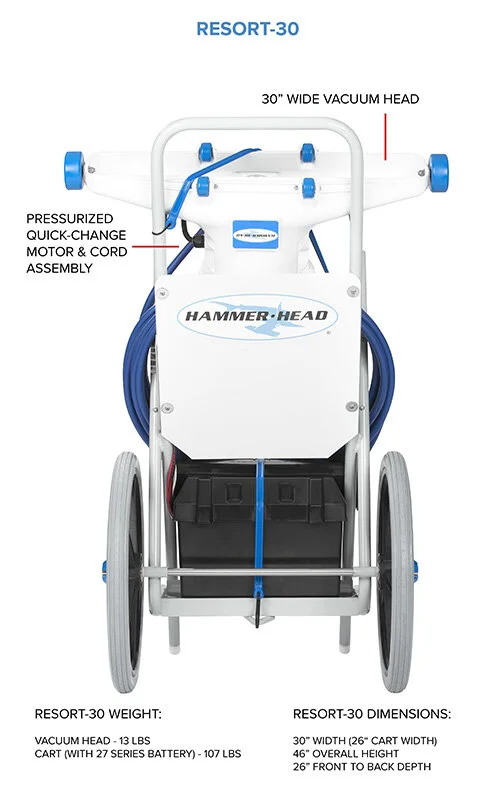

Resort-21 and Resort-30 units are meant to be left on site. The two standard configurations are the Resort-21, which has a 21" vacuum head and a 60ft power cord, and the Resort-30, which has a 30" vacuum head and a 60ft power cord. All resort units ship fully assembled. (Due to ongoing improvements, products may be slightly different than pictured).

NOT INCLUDED:

• 12 VOLT DEEP CYCLE MARINE BATTERY

• STANDARD POOL POLE

• NOT COMPATIBLE WITH THE HAMMER-HEAD VEHICLE MOUNT

SPECIFICATIONS:

• 21" OR 30" INJECTION MOLDED VACUUM HEAD

• NON-MARKING, BEARINGLESS, CAST URETHANE HEAD WHEELS

• STAINLESS POLE SWIVEL MOUNT (two position adjustable angle standard on the Resort-30)

• ALL STAINLESS HARDWARE

• FEATURING THE PATENTED SMART SWITCH™ (The new HH1062 Smart Switch comes standard on all Hammer-Head pool cleaning units. SMART SWITCH™ features include a motor-saving overload sensor, two speeds, and an automatic shutoff when the motor is out of the water for more than a minute).

• Compatible 12 volt automatic battery charger (Included with all Resort Units)

• L.E.D. battery voltage meter

• SEALED AND PRESSURE TESTED MOTOR

• 60FT FLOATING POWER CORD

• TWO BLADE PROPELLER

• WELDED ALUMINUM CADDY CART

• 20" MAG BMX-STYLE CART WHEELS

• NON-MARKING SOLID TIRES

• STAINLESS WHEEL BEARINGS

• TWO DEBRIS BAGS (HH1506 AND HH1508)

• DIMENSIONS: 26" CART WIDTH, 46" OVERALL HEIGHT, 27" FRONT TO BACK DEPTH

• RESORT-21 WEIGHT WITH 27 SERIES MARINE BATTERY: 130 LBS (approximate)

• RESORT-30 WEIGHT WITH 27 SERIES MARINE BATTERY: 132 LBS (approximate)

• 21" VACUUM HEAD & MOTOR WEIGHT: 11 LBS

• 30" VACUUM HEAD & MOTOR WEIGHT: 13 LBS

SHIPPING DIMENSIONS:

• PALLETIZED DIMENSIONS: 30 X 34 X 52 HIGH (one unit per pallet)

• SHIPPING WEIGHT: 90lbs

• FREIGHT CLASS: 250

SERVICE UNITS - FOR POOL ROUTE TECHNICIANS

Service-21 and Service-30 units are meant for pool-to-pool route work, and include a mount assembly for transport. Mount assemblies (HH1306) are compatible with any 2" hitch receiver (vehicle hitch not included). The two standard units are the Service-21, which has a 21" vacuum head and a 40ft power cord, and the Service-30, which has a 30" vacuum head and a 60ft power cord. Service-21 units are also available with a 60ft power cord as an option. (See Optional Configurations below). Service units ship partially assembled. Some assembly and set-up of the vehicle mount is required. (Due to ongoing improvements, products may be slightly different than pictured).

NOT INCLUDED:

• 12 VOLT DEEP CYCLE MARINE BATTERY

• BATTERY CHARGER

• STANDARD POOL POLE

SPECIFICATIONS:

• 21" OR 30" INJECTION MOLDED VACUUM HEAD

• NON-MARKING, BEARINGLESS, CAST URETHANE HEAD WHEELS

• STAINLESS POLE SWIVEL MOUNT (two position adjustable angle standard on the Service-30)

• ALL STAINLESS HARDWARE

• FEATURING THE PATENTED SMART SWITCH™ (The new HH1062 Smart Switch comes standard on all Hammer-Head pool cleaning units. SMART SWITCH™ features include a motor-saving overload sensor, two speeds, and an automatic shutoff when the motor is out of the water for more than a minute).

• L.E.D. battery voltage meter

• SEALED AND PRESSURE TESTED MOTOR

• 40FT OR 60FT FLOATING POWER CORD

• TWO BLADE PROPELLER

• WELDED ALUMINUM CADDY CART

• 20" MAG BMX-STYLE CART WHEELS

• NON-MARKING SOLID TIRES

• STAINLESS WHEEL BEARINGS

• VEHICLE MOUNT ASSEMBLY (HH1306) **Your vehicle must be equipped with a standard 2” hitch receiver.

• TWO DEBRIS BAGS (HH1506 AND HH1508)

• SERVICE-21 WEIGHT WITH 27 SERIES MARINE BATTERY: 155 LBS
  (approximate)

• SERVICE-30 WEIGHT WITH 27 SERIES MARINE BATTERY: 157 LBS
  (approximate)

• 21" VACUUM HEAD & MOTOR WEIGHT: 11 LBS

• 30" VACUUM HEAD & MOTOR WEIGHT: 13 LBS

OPTIONAL CONFIGURATIONS:

• SERVICE-21-60 (with 60ft power cord)

• SERVICE-21-NM (without the vehicle mount assembly)

• SERVICE-30-NM (without the vehicle mount assembly)

• SERV-CART (complete cart assembly only)

• SERV-CART-NM (complete cart assembly without the vehicle mount)

• HH1070 CART FRAME ONLY (see PARTS)

SHIPPING DIMENSIONS:

• PALLETIZED DIMENSIONS: 30 X 34 X 52 HIGH (one unit per pallet)

• SHIPPING WEIGHT: 110lbs

• FREIGHT CLASS: 250


COMPLETE VACUUM HEAD ASSEMBLIES

NOT INCLUDED:

• 12 VOLT DEEP CYCLE MARINE BATTERY

• BATTERY CHARGER

• STANDARD POOL POLE

• BATTERY CASE, BATTERY CONNECTORS, CADDY CART, OR ON/OFF SWITCH

• PLEASE NOTE: Complete vacuum heads do not come with battery-side connections. Wire ends are bare for connection to a Hammer-Head cart or directly to a 12 volt battery using ring terminals or alligator clips. Caution: Direct wire battery connections without the use of a Smart Switch™ or fuse could result in motor damage and may not be covered under warranty.

SPECIFICATIONS:

• 21" INJECTION MOLDED VACUUM HEAD

• CLEARANCE OVER POOL FLOOR = 1"

• NON-MARKING, BEARING-LESS, CAST URETHANE HEAD WHEELS

• STAINLESS POLE SWIVEL MOUNT

• ALL STAINLESS HARDWARE

• 35# THRUST PRESSURIZED MOTOR

• 40FT OR 60FT FLOATING POWER CORD

• TWO BLADE PROPELLER

• ONE DEBRIS BAGS (HH1508 SUPERFINE)

• 21" VACUUM HEAD & MOTOR WEIGHT: 11 LBS

• SHIPPING DIMENSIONS: 19" X 19" X 13"

• ACTUAL SHIPPING WEIGHT: 21 LBS
