HAMMERHEAD POOL CLEANERS
HAMMERHEAD POOL CLEANERS
“The HAMMER-HEAD® has been by far the most essential tool I’ve purchased for my business. In fact, after getting my first one I immediately bought another for my crew. We service pools in Southern California where Santa Ana winds are a weekly occurrence and large debris fills pools. HAMMER-HEAD® has enabled me to cut my service time in half if not more. Not only can I get more pools done faster but do a better job as well. Jobs that would have taken hours or even multiple stops can be handled in about 20 minutes on average with HAMMER-HEAD® and no need to return for additional services or sucking junk into the filter. I can honestly say I am a truly satisfied customer and highly recommend this product! Thanks!”
Hammer-Head® Remora™ Pool Vacuum Kit
Click to download the REMORA™ brochure
INTRODUCING THE NEW HAMMER-HEAD® REMORA™ PORTABLE POOL VAC
REMORA™ is here. We took the legendary quality and performance of the world’s most popular manual pool vacuum and made it even more portable. The REMORA™ features a lighter motor, a shorter power cord, and a wearable lithium battery pack. Click here.
YOU asked for A 2-BLADE PROP. HERE IT IS
We were listening to you all this time and went back to the drawing board to redesign the new 2 blade propeller:
— A more efficient, stronger thrusting blade without the vibration of the previous 2-blade propeller.
— More vertical clearance and more room at the blade ends to allow larger debris to pass.
— Flow through vents so finer debris will be less likely to collect underneath the prop hub.
— Stiffer and stronger composite material.
— We also redesigned prop nut so that it uses an actual nut (one that you could replace if you had to, but you probably won’t).
**CAUTION: This propeller has sharper edges than previous models. Care should taken during use. The HH1004 prop and HH1004G prop kit fits all Hammer-Head units. Patent pending and available now through your dealer.

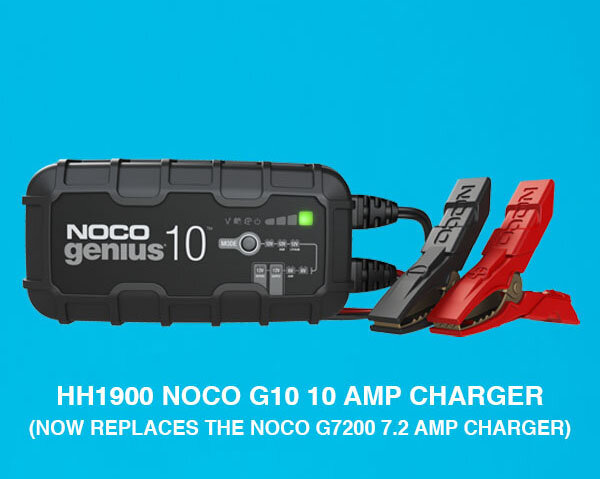

THE NEW GENIUS G10 charger is available
NOCO has introduced the 10 amp G10 as its replacement for the G7200, and so we’ll be shipping G10 chargers under the same HH1900 part number. The G10 includes additional improvements over the G7200 which include:
— 17% smaller but delivering over 28% more power
— Simpler and easier to use than ever before
— Designed for 6-volt and 12-volt lead-acid automotive, marine, and deep-cycle batteries, including flooded, gel, AGM, and maintenance-free, plus lithium-ion batteries
— An integrated thermal sensor detects the ambient temperature and alters the charge to eliminate over-charging in hot climates and under-charging in cold climates
— Charges dead batteries as low as 1-volt. Or use the all-new Force Mode that allows you to take control and manually begin charging dead batteries down to zero volts
— Plug-in, connect to the battery, select a charge mode, and start charging your battery. A fully-automatic, worry-free battery charger for year-round use
— Detects sulfation and acid stratification and restores lost performance for stronger engine starts and extended battery life
— Works internationally from 120V to 240V with the appropriate outlet plug adapter
NOTE: We do not recommend plugging the G10 charger into an existing NOCO Genius charging port on your cart. Use the included battery clamps for direct-to-battery charging with the NOCO G10.
WHAT’S THIS METER THING FOR? AND WHERE’S THE CHARGING PORT?
You may have noticed this LED battery meter on your new Hammer-Head instead of the NOCO Genius charging port. The charging ports have been discontinued by the manufacturer, NOCO, and there are no plans to bring them back, so we’ve added a simple and accurate LED battery meter to each Service and Resort unit. This meter is now available as a retrofit part. See HH1919 on the PARTS page. (Click here).
How does it work? The LED meter is an effective tool for knowing your battery level at any given time and for diagnosing performance, battery, or power problems more accurately. Use our chart to learn how each color and its corresponding voltage can show you just what is going on.
95% of all of the customer service calls we take are battery related, so before you assume you have a motor or switch issue, make sure you don’t have a battery issue. Download the user guide below.
WANT EASIER BATTERY ACCESS?
The new HH5056 Battery Box has been redesigned for easier battery access with an exclusive 3-piece design. Simply lift the font panel out of the way to access, maintain, or charge your marine battery while it’s still on the cart. Exposed battery terminals will corrode faster, can be accidentally bridged, and can lead to overheating and possible fire. Cover your marine battery for safety and protect it from sun, heat, rain, and pool water.
Be sure to read all safety information regarding marine batteries and their proper use in the LEARN section of our site.
“I love my HAMMER-HEAD® vacuum system because this machine allows me to service more customers in a single day. As a result, more money is made for my business. It takes me practically no time to vacuum a pool (no matter the type or size of debris) because of the machine’s power and suction. The HAMMER-HEAD® machine is lightweight and easy to carry from location to location. It’s a reliable, well-built, user-friendly machine compared to other similar machines in the market. The machine doesn’t require me to connect to a customer’s equipment (as other machines used in the past). Therefore, less wear and tear on the customer’s equipment. It’s a win-win for everyone. The HAMMER-HEAD® machine is so good, it’s the ONLY pool vacuum I trust for my business. I have three and counting.”
we are telly winners
Our in-house video production of Shark Girl: An Introduction To The Hammer-Head Pool Cleaning Machine earned a Silver Award in the 41st Annual Telly Awards competition in 2020. Watch the Shark Girl video and see the Hammer-Head pool cleaning process from start to finish
Established in 1979, The Telly Awards receives over 12,000 entries from all 50 states and 5 continents. Entrants are judged by The Telly Awards Judging Council—an industry body of over 200 leading experts including advertising agencies, production companies, and major television networks, reflective of the multiscreen industry The Telly Awards celebrates. Partners of The Telly Awards include Catalyst, LAPPG, NAB, Stash, Storyhunter, NYWIFT, Production Hub, IFP, Social Media Week and VidCon.
WE HAVE BEEN PROUDLY SERVING THE SERVICE INDUSTRY FOR OVER 20 YEARS
“HAMMER-HEAD® has been the go to tool of my company since its inception in 2015. Currently we have two in the field and one set up in storage as a back up and we’ve never needed the backup! The guys couldn’t get through the day without them. And my REMORA™ is perfect for tough-to-reach elevated spaces and shallow fountains. I love HAMMER-HEAD®...”
The Service-21 and Service-30 units mount securely to any trailer or 2" trailer hitch receiver for safe transport from pool to pool. Lightweight and easy to maneuver, service units can transport everything you need in one trip. Resort-21 and Resort-30 units are meant for on-site cleaning, and are perfect for the aquatics manager of any hotel, water park, condominium, or fitness center. Service and Resort use the same interchangeable parts and powerful 12volt motor, but are built using different cart frames. The caddy cart is the only main difference between a Service unit and a Resort unit.
Just set up next to the pool, attach a standard pool pole and instantly begin cleaning. Our patented head design and pressurized, 30-pound thrust motor, pump an amazing 16,000 GPH, vacuuming up almost anything— sticks, leaves, sand, and even coins. Hammer-Head's time savings (up to 50% per pool) helps increase overall profitability by shortening your day. You'll accomplish more with less effort, and your Hammer-Head unit will pay for itself in a matter of weeks. Once you try a Hammer-Head, you'll never want to clean pools with anything else.
Are you ready to WORK SMARTER?
HAMMERHEAD POOL CLEANER SPECS
HAMMERHEAD POOL CLEANER SPECS
take our word for it: GOOD TOOLS PAY FOR THEMSELVES
We make our industry standard pool cleaning machines in several different configurations. All of our cleaners use interchangeable parts and debris bags for convenience, and all use our sealed and pressurized motor assembly. What's the difference between Service and Resort units? It's all in the cart. Click on the pictures below to review the features on each cleaner.
RESORT UNITS - FOR FACILITY MANAGERS
Please note: Because of the cart design, Resort units DO NOT include and are NOT compatible with our vehicle mount assembly. If you need to transport the cleaner using your vehicle's trailer hitch, please see the SERVICE-21 and SERVICE-30.
Resort-21 and Resort-30 units are meant to be left on site. The two standard configurations are the Resort-21, which has a 21" vacuum head and a 60ft power cord, and the Resort-30, which has a 30" vacuum head and a 60ft power cord. All resort units ship fully assembled. (Due to ongoing improvements, products may be slightly different than pictured).
NOT INCLUDED:
12 VOLT DEEP CYCLE MARINE BATTERY
STANDARD POOL POLE
NOT COMPATIBLE WITH THE HAMMER-HEAD VEHICLE MOUNT
SPECIFICATIONS:
21" OR 30" INJECTION MOLDED VACUUM HEAD
NON-MARKING, BEARINGLESS, CAST URETHANE HEAD WHEELS
STAINLESS POLE SWIVEL MOUNT (two position adjustable angle standard on the Resort-30)
ALL STAINLESS HARDWARE
FEATURING THE PATENTED SMART SWITCH™ (The new HH1062 Smart Switch comes standard on all Hammer-Head pool cleaning units. SMART SWITCH™ features include a motor-saving overload sensor, two speeds, and an automatic shutoff when the motor is out of the water for more than a minute).
Compatible 12 volt automatic battery charger (Included with all Resort Units)
L.E.D. battery voltage meter
SEALED AND PRESSURE TESTED MOTOR
60FT FLOATING POWER CORD
TWO BLADE PROPELLER
WELDED ALUMINUM CADDY CART
20" MAG BMX-STYLE CART WHEELS
NON-MARKING SOLID TIRES
STAINLESS WHEEL BEARINGS
TWO DEBRIS BAGS (HH1506 AND HH1508)
DIMENSIONS: 26" CART WIDTH, 46" OVERALL HEIGHT, 27" FRONT TO BACK DEPTH
RESORT-21 WEIGHT WITH 27 SERIES MARINE BATTERY: 130 LBS (approximate)
RESORT-30 WEIGHT WITH 27 SERIES MARINE BATTERY: 132 LBS (approximate)
21" VACUUM HEAD & MOTOR WEIGHT: 11 LBS
30" VACUUM HEAD & MOTOR WEIGHT: 13 LBS
SHIPPING DIMENSIONS:
PALLETIZED DIMENSIONS: 30 X 34 X 52 HIGH (one unit per pallet)
SHIPPING WEIGHT: 90lbs
FREIGHT CLASS: 250
SERVICE UNITS - FOR POOL ROUTE TECHNICIANS
Service-21 and Service-30 units are meant for pool-to-pool route work, and include a mount assembly for transport. Mount assemblies (HH1306) are compatible with any 2" hitch receiver (vehicle hitch not included). The two standard units are the Service-21, which has a 21" vacuum head and a 40ft power cord, and the Service-30, which has a 30" vacuum head and a 60ft power cord. Service-21 units are also available with a 60ft power cord as an option. (See Optional Configurations below). Service units ship partially assembled. Some assembly and set-up of the vehicle mount is required. (Due to ongoing improvements, products may be slightly different than pictured).
NOT INCLUDED:
12 VOLT DEEP CYCLE MARINE BATTERY
BATTERY CHARGER
STANDARD POOL POLE
SPECIFICATIONS:
21" OR 30" INJECTION MOLDED VACUUM HEAD
NON-MARKING, BEARINGLESS, CAST URETHANE HEAD WHEELS
STAINLESS POLE SWIVEL MOUNT (two position adjustable angle standard on the Service-30)
ALL STAINLESS HARDWARE
FEATURING THE PATENTED SMART SWITCH™ (The new HH1062 Smart Switch comes standard on all Hammer-Head pool cleaning units. SMART SWITCH™ features include a motor-saving overload sensor, two speeds, and an automatic shutoff when the motor is out of the water for more than a minute).
L.E.D. battery voltage meter
SEALED AND PRESSURE TESTED MOTOR
40FT OR 60FT FLOATING POWER CORD
TWO BLADE PROPELLER
WELDED ALUMINUM CADDY CART
20" MAG BMX-STYLE CART WHEELS
NON-MARKING SOLID TIRES
STAINLESS WHEEL BEARINGS
VEHICLE MOUNT ASSEMBLY (HH1306) **Your vehicle must be equipped with a standard 2” hitch receiver.
TWO DEBRIS BAGS (HH1506 AND HH1508)
SERVICE-21 WEIGHT WITH 27 SERIES MARINE BATTERY: 155 LBS
(approximate)SERVICE-30 WEIGHT WITH 27 SERIES MARINE BATTERY: 157 LBS
(approximate)21" VACUUM HEAD & MOTOR WEIGHT: 11 LBS
30" VACUUM HEAD & MOTOR WEIGHT: 13 LBS
OPTIONAL CONFIGURATIONS:
SERVICE-21-60 (with 60ft power cord)
SERVICE-21-NM (without the vehicle mount assembly)
SERVICE-30-NM (without the vehicle mount assembly)
SERV-CART (complete cart assembly only)
SERV-CART-NM (complete cart assembly without the vehicle mount)
HH1070 CART FRAME ONLY (see PARTS)
SHIPPING DIMENSIONS:
PALLETIZED DIMENSIONS: 30 X 34 X 52 HIGH (one unit per pallet)
SHIPPING WEIGHT: 110lbs
FREIGHT CLASS: 250
COMPLETE VACUUM HEAD ASSEMBLIES
NOT INCLUDED:
12 VOLT DEEP CYCLE MARINE BATTERY
BATTERY CHARGER
STANDARD POOL POLE
BATTERY CASE, BATTERY CONNECTORS, CADDY CART, OR ON/OFF SWITCH
PLEASE NOTE: Complete vacuum heads do not come with battery-side connections. Wire ends are bare for connection to a Hammer-Head cart or directly to a 12 volt battery using ring terminals or alligator clips. Caution: Direct wire battery connections without the use of a Smart Switch™ or fuse could result in motor damage and may not be covered under warranty.
SPECIFICATIONS:
30" INJECTION MOLDED VACUUM HEAD
CLEARANCE OVER POOL FLOOR = 1"
NON-MARKING, BEARING-LESS, CAST URETHANE HEAD WHEELS
STAINLESS POLE SWIVEL MOUNT (two position adjustable angle standard on the HH1320 30" COMPLETE VACUUM HEAD)
ALL STAINLESS HARDWARE
35# THRUST PRESSURIZED MOTOR
40FT OR 60FT FLOATING POWER CORD
TWO BLADE PROPELLER
ONE DEBRIS BAG (HH1508 SUPERFINE)
30" VACUUM HEAD & MOTOR WEIGHT: 13 LBS
SHIPPING DIMENSIONS: 31" X 19" X 13"
ACTUAL SHIPPING WEIGHT: 26 LBS
NOT INCLUDED:
12 VOLT DEEP CYCLE MARINE BATTERY
BATTERY CHARGER
STANDARD POOL POLE
BATTERY CASE, BATTERY CONNECTORS, CADDY CART, OR ON/OFF SWITCH
PLEASE NOTE: Complete vacuum heads do not come with battery-side connections. Wire ends are bare for connection to a Hammer-Head cart or directly to a 12 volt battery using ring terminals or alligator clips. Caution: Direct wire battery connections without the use of a Smart Switch™ or fuse could result in motor damage and may not be covered under warranty.
SPECIFICATIONS:
21" INJECTION MOLDED VACUUM HEAD
CLEARANCE OVER POOL FLOOR = 1"
NON-MARKING, BEARING-LESS, CAST URETHANE HEAD WHEELS
STAINLESS POLE SWIVEL MOUNT
ALL STAINLESS HARDWARE
35# THRUST PRESSURIZED MOTOR
40FT OR 60FT FLOATING POWER CORD
TWO BLADE PROPELLER
ONE DEBRIS BAGS (HH1508 SUPERFINE)
21" VACUUM HEAD & MOTOR WEIGHT: 11 LBS
SHIPPING DIMENSIONS: 19" X 19" X 13"
ACTUAL SHIPPING WEIGHT: 21 LBS
“I love the HAMMER-HEAD® vac because it gets the job done efficiently EVERY time - no questions asked. I’ve been using your HAMMER-HEAD® vac now 5 years strong and I wouldn’t recommend any other vacuum! Strong suction, long battery life, durable frame and nice easy wrap power cord, Awesome Product!! Highly recommended! (Five emoji stars)”
